VLAN plan

VLAN plan

vlan_plan.json in mikrotik-dashboard is the git-only intent. The dashboard page /vlanplan reads every REST device's bridge / VLAN / port / list membership and judges it against that file. Snapshot below is plan version 2026-09-06, still the live intent on 2026-09-16 (overview: 0 critical, 2 warnings, 0 unknown VLANs, 16/16 pathproof green).

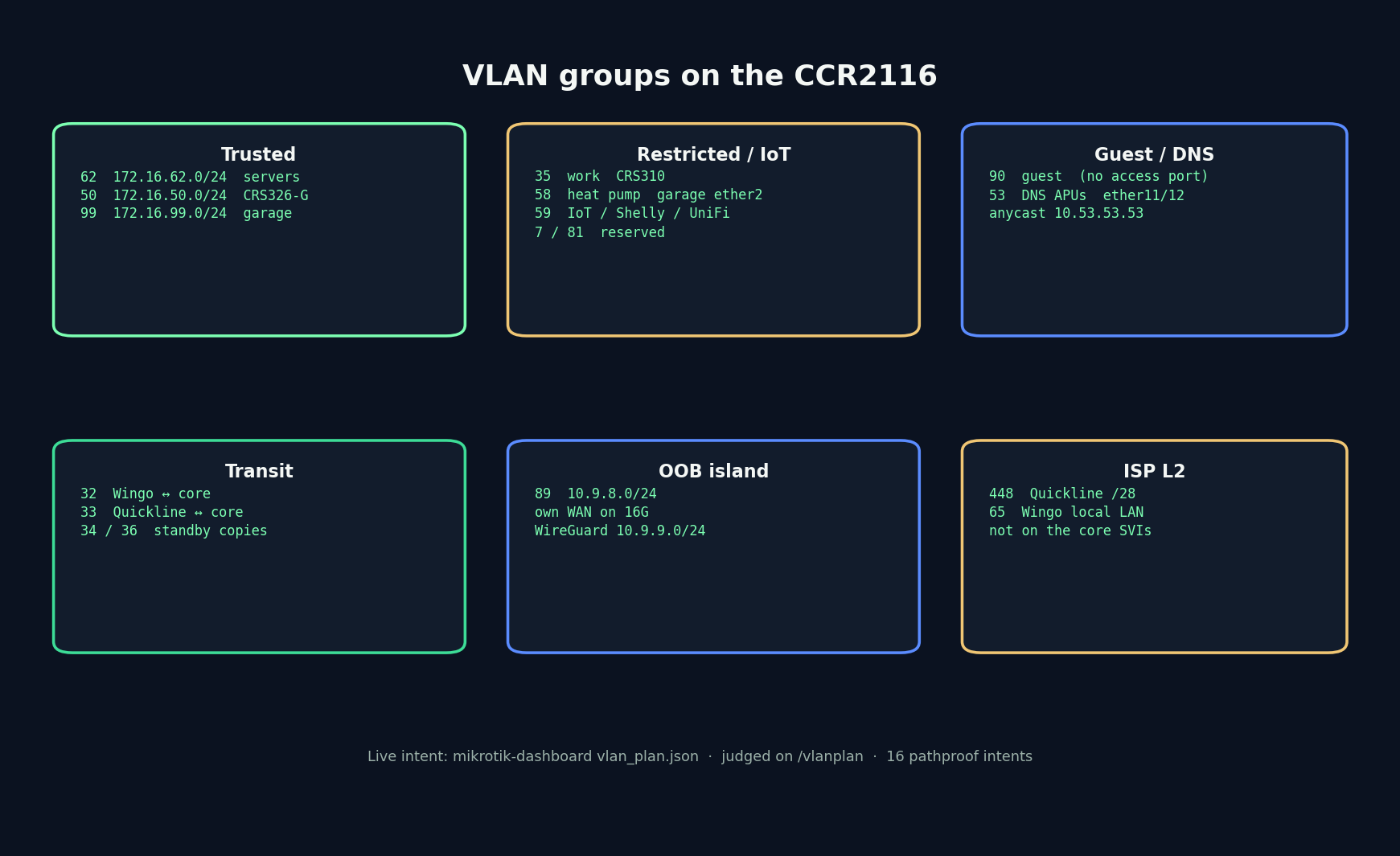

VLAN groups on the CCR2116

Production SVIs (CCR2116, VRRP .1)

VLAN Name Prefix / gateway List on core Where hosts sit
62 LAN-TRUSTED-62 172.16.62.1/24 LAN-TRUSTED hp02, hp04, mag01, desk (CRS326-C SFP+ and CRS310)
50 LAN-50 172.16.50.1/24 LAN-TRUSTED CRS326-24G copper (syn01 and neighbours)
99 LAN-TRUSTED-99 172.16.99.1/24 LAN-TRUSTED Garage hEX management; CRS310 ether4
35 LAN-WORK 172.16.35.1/24 LAN-RESTRICTED CRS310 ether3 “Work”
58 LAN-HEATPUMP 172.16.58.1/24 LAN-RESTRICTED + VLAN58-ANY Garage hEX ether2 → Luxtronik 172.16.58.10
59 LAN-IOT 172.16.59.1/24 LAN-IOT Shelly / UniFi / Ikea; FAB-10 moved this off LAN-TRUSTED
90 LAN-GUEST 172.16.90.1/24 LAN-GUEST Carried on core + both CRS326-24S+; no access port today
7 LAN-RESTRICTED-7 172.16.7.1/24 LAN-RESTRICTED No adopted access port
81 LAN-RESTRICTED-81 172.16.81.1/24 LAN-RESTRICTED Core-only reserved; never had a host

core-sb (CHR on hp02) holds the same SVIs as VRRP backup: real .3, VIP .1, priority 100. DHCP scopes on the standby are disabled until it is VRRP master.

DNS fabric

VLAN Name Prefix Notes
53 LAN-DNS 192.168.53.0/24 gw 192.168.53.1 Untagged on CCR2116 ether11 (apu01) and ether12 (apu02) only. OSPF + BFD.
— anycast 10.53.53.53/32 on each APU lo Advertised by FRR. Clients never pick a box. See DNS APUs.

Unbound ACL is fabric prefixes, not all of RFC1918. Production DHCP DNS is the anycast, not a vlan89 Grafana address.

Routed transits (not bridged)

VLAN Name Prefix Speakers Cost
33 TRANSIT-QUICKLINE 192.168.33.0/24 QL edge .1 ↔ core .2 10 + BFD
32 TRANSIT-WINGO 192.168.32.0/24 Wingo edge .1 ↔ core .2 20 + BFD
34 TRANSIT-STANDBY-QUICKLINE 192.168.34.0/24 QL edge ↔ core-sb 30 (no BFD yet)
36 TRANSIT-STANDBY-WINGO 192.168.36.0/24 Wingo edge ↔ core-sb 40 (no BFD yet)

Standby transits live on CRS326-C only, not on the backbone. That is how the CHR can talk OSPF to both edges without depending on the CCR2116.

Other islands

VLAN Name Prefix Island
89 MGMT 10.9.8.1/24 on CCR2004-16G Out-of-band. Every other device joins with an unbridged L3 port. REST, Winbox, iLO, NanoKVM, hex-ci.
448 ISP-HANDOFF Quickline 213.221.211.16/28 CRS317 fan-out. hp04's public NIC, QL edge WAN, hex_81. Not a core SVI.
65 WINGO-LAN 192.168.65.1/24 Local LAN on the Wingo CCR2004 only.

WireGuard on the mgmt router is 10.9.9.0/24 (wg1). Home WireGuard (wg-home) terminates on apu01 172.16.75.1/24, not on the CCR2116.

flowchart LR
  subgraph trusted [LAN-TRUSTED]
    V62[vlan62 servers]
    V50[vlan50 copper]
    V99[vlan99 garage]
  end
  subgraph rest [Restricted]
    V35[vlan35 work]
    V58[vlan58 heatpump]
    V59[vlan59 IoT]
    V90[vlan90 guest]
  end
  CORE[CCR2116 SVIs]
  trusted --> CORE
  rest --> CORE
  CORE --> WAN[vlan32 / vlan33 OSPF]
  CORE --> DNS[vlan53 + 10.53.53.53]
  OOB[vlan89 10.9.8.0/24] -.->|unbridged L3| BOXES[every router / switch]

How to read /vlanplan

Live UI: http://172.16.62.253:8787/vlanplan.
